API Endpoints

What Are API Endpoints?

API Endpoints let you trigger automations from external systems. Turn any process into a REST API that can be called from:

Webhooks
Cron jobs
Other applications
CI/CD pipelines
Custom integrations

Creating an Endpoint

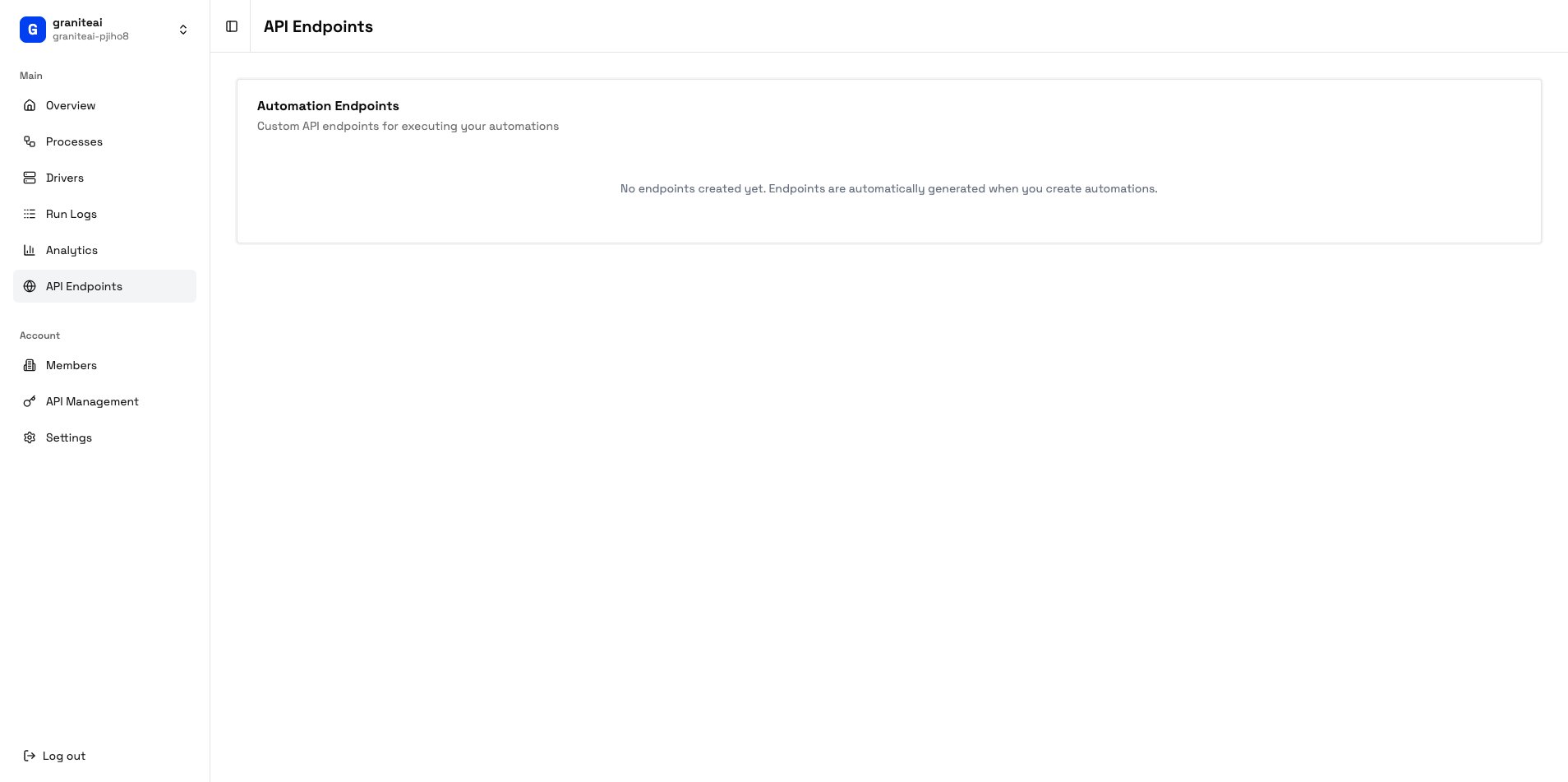

Go to API Endpoints

Navigate to API Endpoints in the sidebar

Click Create Endpoint

Hit the + Create Endpoint button

Configure the Endpoint

Field	Description	Example
Name	Descriptive name	”Generate Monthly Report”
Slug	URL path	`generate-report`
Process	Which process to run	Select from dropdown
Method	HTTP method	GET, POST

Save

Click Create to generate the endpoint

Endpoint URL Structure

Your endpoints follow this pattern:

https://api.getgranite.ai/api/{org-slug}/{endpoint-slug}

For example:

https://api.getgranite.ai/api/acme-corp/generate-report

Authentication

All API endpoints require authentication via the X-Granite-API-Key header:

curl -X POST "https://api.getgranite.ai/api/acme-corp/generate-report" \
  -H "X-Granite-API-Key: gk_live_abc123..." \
  -H "Content-Type: application/json" \
  -d '{"month": "January"}'

Never expose your API key in client-side code or public repositories. Keep it server-side only.

Passing Parameters

Send parameters as JSON in the request body:

curl -X POST "https://api.getgranite.ai/api/acme-corp/process-invoice" \
  -H "X-Granite-API-Key: gk_live_abc123..." \
  -H "Content-Type: application/json" \
  -d '{
    "invoiceNumber": "INV-2024-001",
    "amount": 1500.00,
    "vendor": "Acme Supplies"
  }'

These parameters are available to your automation during execution.

Testing Endpoints

Test your endpoint directly from the dashboard:

Open the Endpoint

Click on the endpoint you want to test

Enter Test Parameters

Fill in the parameter form with test values

Click Test

The endpoint will be called and you’ll see the response

Example Test Response

{
  "runId": "run_abc123",
  "status": "queued",
  "message": "Automation queued successfully",
  "estimatedWait": "30s"
}

Response Formats

Synchronous (Wait for Result)

Add ?wait=true to wait for completion:

curl -X POST "https://api.getgranite.ai/api/acme-corp/quick-task?wait=true" \
  -H "X-Granite-API-Key: gk_live_abc123..."

Response:

{
  "runId": "run_abc123",
  "status": "completed",
  "duration": 45000,
  "result": {
    "output": "Task completed successfully"
  }
}

Asynchronous (Fire and Forget)

Default behavior returns immediately:

{
  "runId": "run_abc123",
  "status": "queued"
}

Then poll for status:

curl "https://api.getgranite.ai/api/agent-runs/run_abc123" \
  -H "X-Granite-API-Key: gk_live_abc123..."

Endpoint Settings

Setting	Description
Enabled	Toggle endpoint on/off
Rate Limit	Max calls per minute
Timeout	Max wait time for sync calls
HITL Mode	Whether to require human approval

API-triggered automations typically run without HITL approval for full automation. Configure carefully.

cURL Examples

The dashboard generates ready-to-use cURL commands:

Basic
With Parameters
Wait for Result

curl -X POST "https://api.getgranite.ai/api/acme-corp/my-endpoint" \
  -H "X-Granite-API-Key: YOUR_API_KEY"

curl -X POST "https://api.getgranite.ai/api/acme-corp/my-endpoint" \
  -H "X-Granite-API-Key: YOUR_API_KEY" \
  -H "Content-Type: application/json" \
  -d '{"param1": "value1", "param2": "value2"}'

curl -X POST "https://api.getgranite.ai/api/acme-corp/my-endpoint?wait=true" \
  -H "X-Granite-API-Key: YOUR_API_KEY" \
  -H "Content-Type: application/json" \
  -d '{"param1": "value1"}'

Error Responses

Status Code	Meaning
`200`	Success
`400`	Bad request (invalid parameters)
`401`	Unauthorized (invalid/missing API key)
`404`	Endpoint not found
`429`	Rate limit exceeded
`500`	Server error

Error Response Format

{
  "error": "invalid_parameters",
  "message": "Required parameter 'invoiceNumber' is missing",
  "code": 400
}

Monitoring Endpoint Usage

Track your API usage in the Analytics dashboard:

Total calls - How often the endpoint is called
Success rate - Percentage of successful invocations
Avg latency - Response time
Top callers - If using multiple API keys

Next Steps

API Management

Create and manage API keys

Public API Guide

Deep dive into API integration
